Characteristics

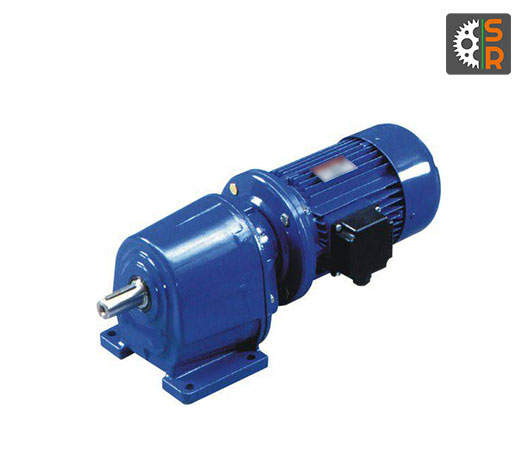

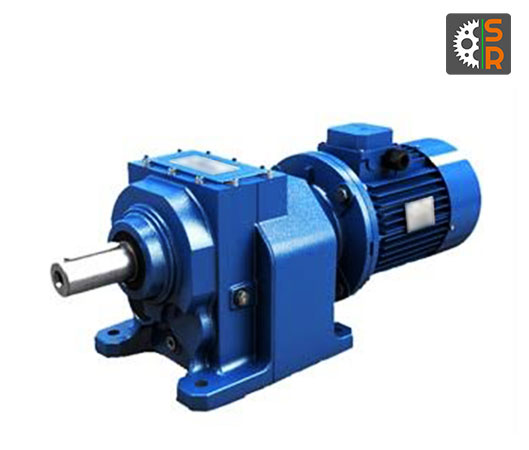

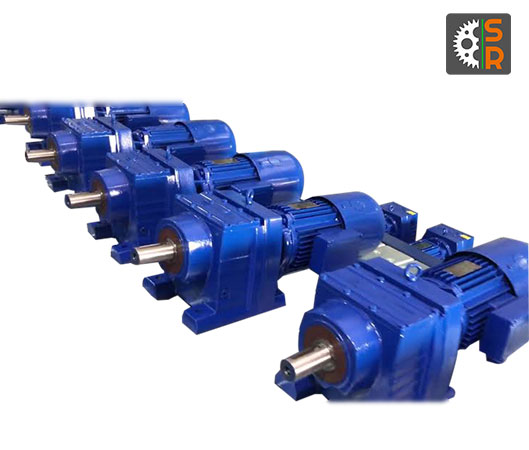

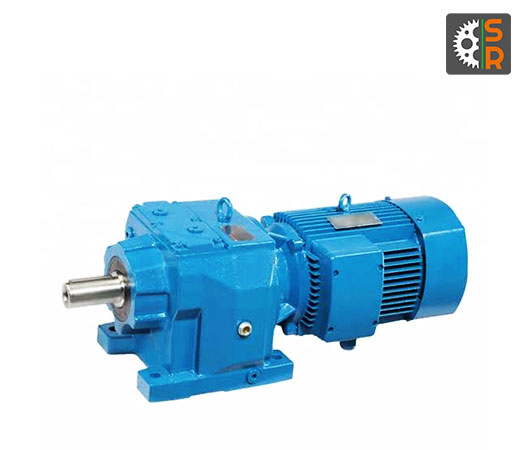

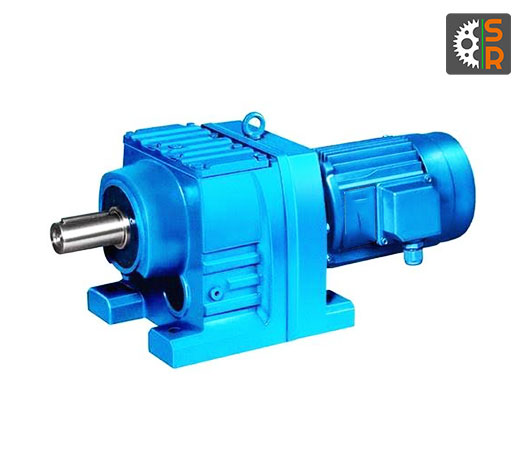

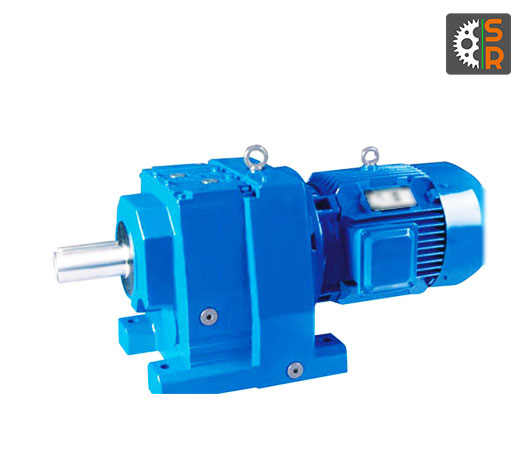

• Helical Gear Motors are designed for continuous duty under difficult operating conditions
• State of the art gear box housing designed for operation under harsh conditions
• Gear case and flanges of high strength gray cast iron.
• Compact closed rigid, precise, monobloc, cast iron housing for preventing of lubrication loss and dirt built up.
• Gear Wheels made of high strength case hardened steel.
• Highly wear resistant though flank hardness of 58-62 HRC
• Tooth Flanks of all gear wheels are hobbed and profile ground to AGMA 10 accuracy for low noise and high efficiency.
• Strong, non flexible pinion shafts and bearings guarantee an exact tooth meshing
• Oversize bearings size to withstand higher loads
• Dual bearing support on the input shaft assures precise alignment of the first stage gears and reduces vibrations and consequent gear wear
• Shafts are made from En-8 and tempered thus increasing their capacity to withstand shearing stress
• To withstand higher radial loads, Smaller overhang distance of output shaft from supporting bearings.
• Mechanical parts locked in their positions by snap rings and spacers. This also ensures better absorption of axial thrust and prolongs the life of bearings.
• Higher ratio available through attachment of pre stage or pre connected gear box
• Ratios available from 1.4 – 250All units are dimensionally interchangeable with other major manufacturers.

Features

• Helical Gear Motors are designed for continuous duty under difficult operating conditions.
• Gears are carburized to a hardness of 58 – 62 HRC for durability.enance
• Gear case and flanges of high strength gray cast iron.
• Foot mounted, flange mounted.
• Ease-Of-Operation
• High Performance
• Durability

Application

• Conveyors.
• Agitators.
• Elevators.
• Cranes.
• Crushers

Technical Data
