Plumber Block Bearing
Plumber Block Bearing
SHRI RAJESHWARI-INDUSTRIAL ESSENTIALS has developed the new series of Plummer blocks compared to the previous “Nisuka”Plummer blocks, these were redesigned with greater housing rigidity and they have improved performance and reliability. Grease lubricated Plummer blocks are used for large plant industrial machinery.
We have modified existing Plummer blocks and developed the new series products which are superior in terms of functionality and reliability while being designed to use common parts
Our Products
Quick Enquiry
Special Features of Plummer Block
- Single piece bearing housing to increase strength of plumber block & life of bearing.
- Special bearing design to take highly miss-alignment of shaft.
- Single piece Bearing housing will take load on all angle.
- Length of Inner ring of bearing is extended to get high gripping with shaft and additional locking provision is also available.
- Both side oil seal locking arrangement
- Reinforcement rectangle base with slot type fixing arrangement for easy assembly with machine.
- Reinforced housing with good heat flow to increase stiffness of housing.
- Outer ring of bearing is fixed instead of inner ring to allow high miss-alignment.
- Easy assembly of Plummer block.
MILD STEEL PLUMMER BLOCK 22300 SERIES TECHNICAL SPECIFICATION

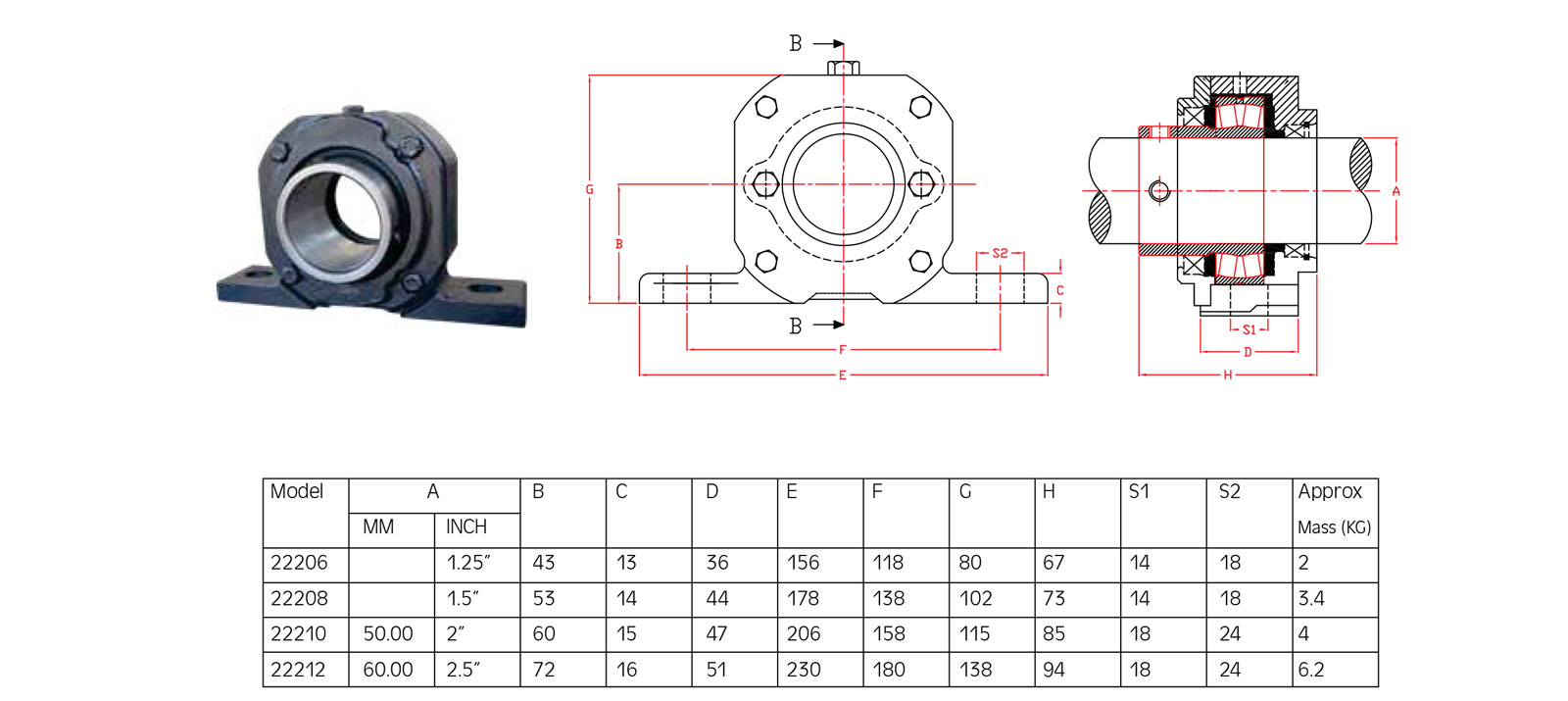

CAST IRON PLUMMER BLOCK 22200 SERIES TECHNICAL SPECIFICATION
